Securing Selector Lever Cable Inside Vehicle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

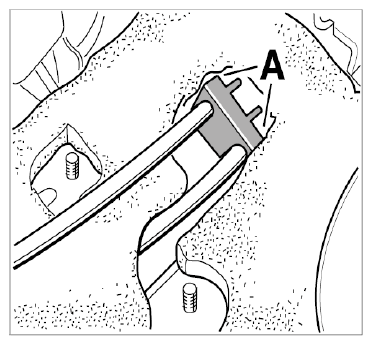

Bend tabs -A- downwards at the body opening.

Fig 1: Identifying Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

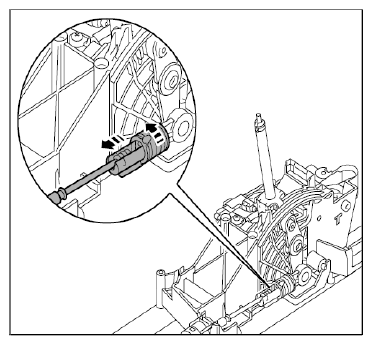

Clip in support bracket at selector frame.

Fig 2: Clipping In Support Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

During installation, make sure that the selector lever is in position P on the selector frame and transmission.

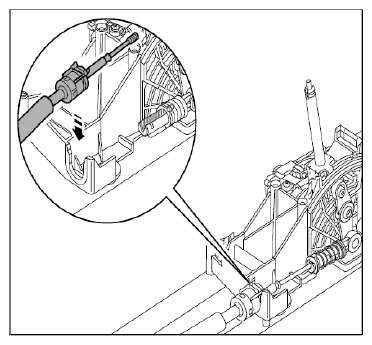

Engage adjustment pins.

Fig 3: Engaging Selector Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

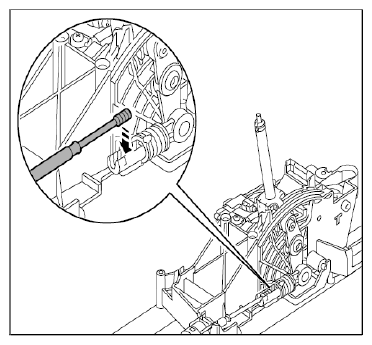

Close bayonet lock.

Fig 4: Closing Bayonet Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
