Detaching Selector Lever Cable Inside Vehicle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove selector knob. → 370419 REMOVING AND INSTALLING SELECTOR KNOB - section on "Removing"
Remove center console. → 681719 REMOVING AND INSTALLING CENTRE CONSOLE - section on "Removing"
Loosen parking-brake lever. → 466119 REMOVING AND INSTALLING PARKING-BRAKE LEVER - section on "Removing"
Open bayonet lock.

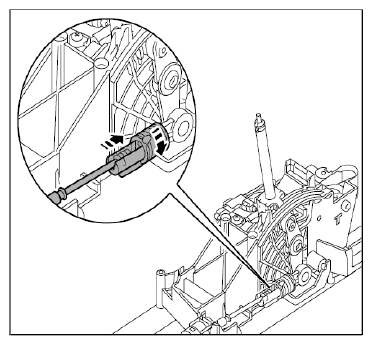

Fig 1: Opening Bayonet Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach adjustment pins.

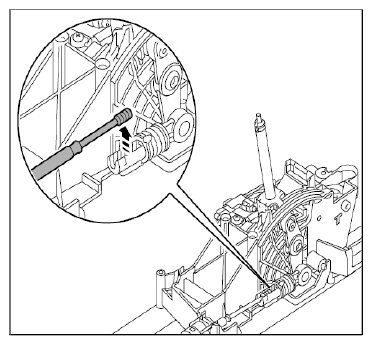

Fig 2: Disengaging Selector Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip support bracket at selector frame.

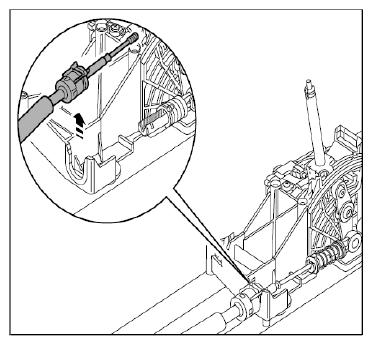

Fig 3: Unclipping Support Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bend up the tabs -A- at the body opening and push the rubber sleeve outward through the body opening.

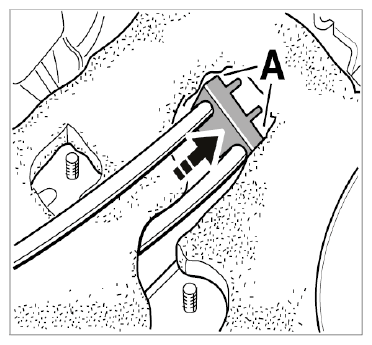

Fig 4: Pushing Rubber Sleeve Outward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
