Fastening Selector Lever Cable On Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The selector lever cable must be laid above the intermediate carrier.

Push cable through the body opening from below.
Apply a coating of lubricant (e.g. Contifix tire mounting paste) on the rubber sleeve and B+ wiring in the area of the body opening, insert the B+ wiring in the rubber sleeve and press rubber sleeve into the body opening.

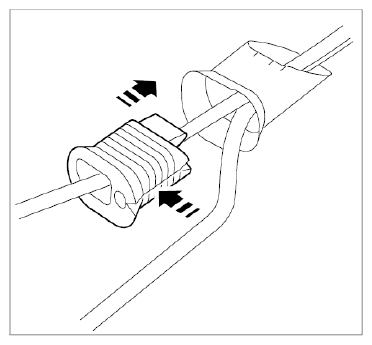

Fig 1: Pressing Rubber Sleeve In Body Opening
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

During installation, make sure the selector lever on the transmission is in position P (stop to the rear).
Clip selector lever cable into support on transmission and press end piece of selector lever onto transmission.

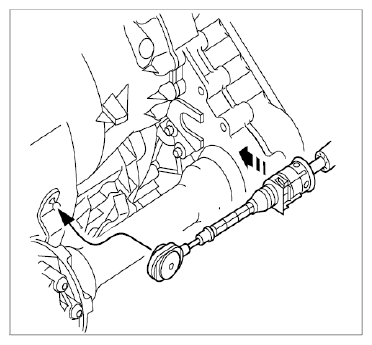

Fig 2: Engaging Selector Lever Cable On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit plastic cover -A- around pinion shaft.

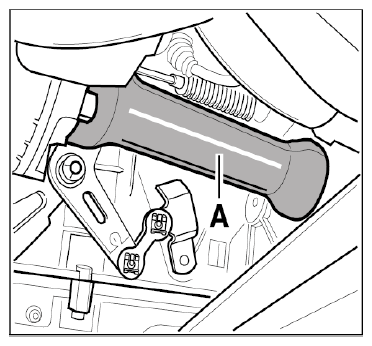

Fig 3: Identifying Pinion Shaft Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit transmission support.

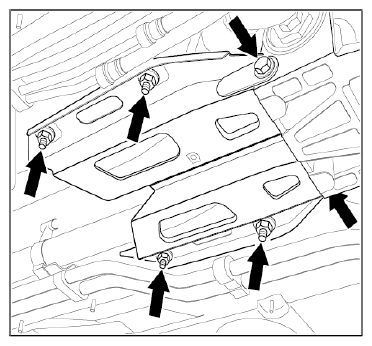

Fig 4: Locating Transmission Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Transmission support		Tightening torque	65 Nm (48 ft. lb.)
