Removing Parking Lock Cable

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disengage parking lock cable on the PDK transmission.
1. 1.1. Press ball head of parking lock cable -1- off the parking lock lever.
2. 1.2. Release parking lock cable -1- at the bracket by pressing the locking lugs -2- together and pull it out.
Fig 1: Removing Parking Lock Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect parking lock cable from the selector support.
1. 2.1. Open the bayonet lock -2- on the parking lock cable, pull it off and disengage it at the support.
2. 2.2. Release and pull off electric multiple plug connector -3- .

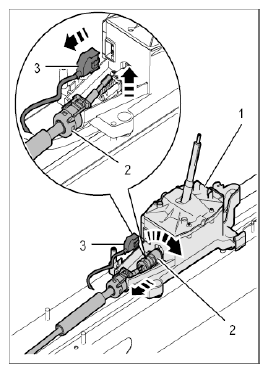

Fig 2: Disconnecting Parking Lock Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the parking lock cable out of the body guide.
Press rubber sleeve -3- outwards and remove parking lock cable -1- .

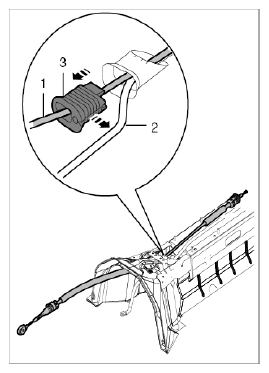

Fig 3: Pressing Out Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
