Installing Parking Lock Cable: Notes

Information

• During installation, make sure that the selector lever is in position "P" on the selector support and at the rear end position on the transmission.
• The parking lock must be fully engaged.

1. Slide the selector lever cable through the body guide from underneath.
   1. 1.1. Apply a coating of lubricant (e.g. Contifix tire mounting paste) on the rubber sleeve -3-  and B+ cable -2-  close to the body opening.
   2. 1.2. Slide the B+ cable -2-  into the rubber sleeve -3-  . Then press the rubber sleeve -3-  into the body guide and engage it.

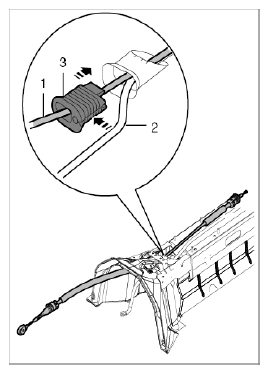

   Fig 1: Pressing In Rubber Sleeve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Engage parking lock cable on the PDK transmission.
   1. 2.1. Check that the gear selector on the selector support is in position "P" and is locked.
   2. 2.2. Check that the transmission parking lock is fully engaged.
   3. 2.3. Fit the parking lock cable -1-  on the bracket, press it in and engage it.
   4. 2.4. Press ball head of parking lock cable -1-  onto the parking lock lever.

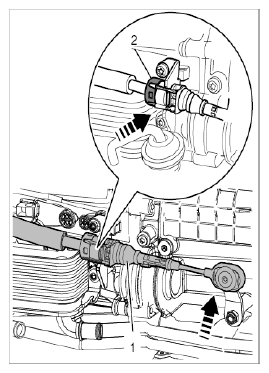

   Fig 2: Engaging Parking Lock Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Connect parking lock cable at the selector support.
   NOTE: The parking lock cable must only be connected without pretension.
   1. 3.1. Insert parking lock cable into the bayonet lock -2-  and lock the bayonet lock.
   2. 3.2. Attach parking lock cable to the support and engage securely.
   3. 3.3. Connect electric multiple plug connector -3-  .

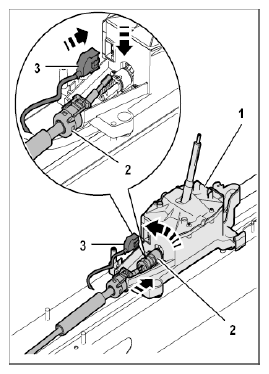

   Fig 3: Connecting Parking Lock Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
