Removing Selector Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Move selector lever to position P.
Disconnect selector support
1. 2.1. Open the bayonet lock -2- on the parking lock cable, pull it off and disengage it at the support.
2. 2.2. Release and pull off electric multiple plug connector -3- .

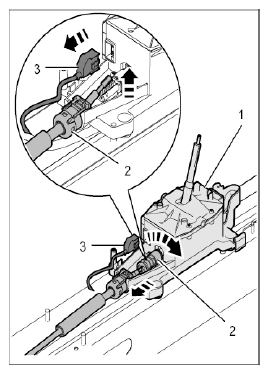

Fig 1: Disconnecting Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove selector support.
Unscrew nuts -2- and remove selector support -1- in an upward direction.

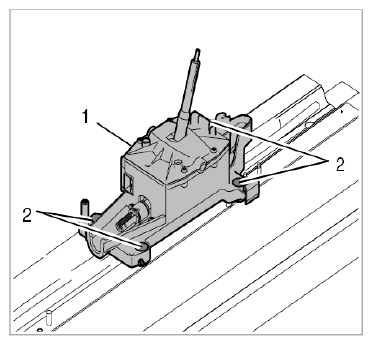

Fig 2: Removing And Installing Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
