Installing Selector Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before starting to install the selector support, ensure that the transmission and selector support are in position "P".

Install selector support.
Fit the selector support -1- and screw on and tighten nuts -2- .

→ Tightening torque: 10 Nm (7.5 ft. lb.)

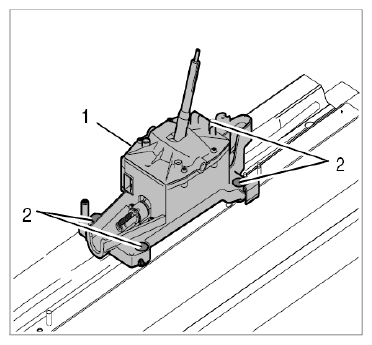

Fig 1: Removing And Installing Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect selector support.
1. 2.1. Engage parking lock cable on the support and lock the bayonet lock -2- .
2. 2.2. Release and pull off electric multiple plug connector -3- .

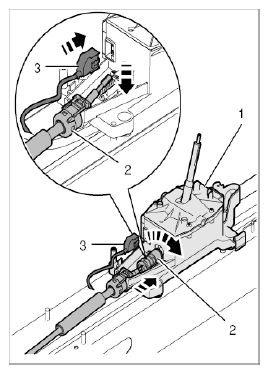

Fig 2: Connecting Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
