Removing Selector Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Move selector lever to position P.

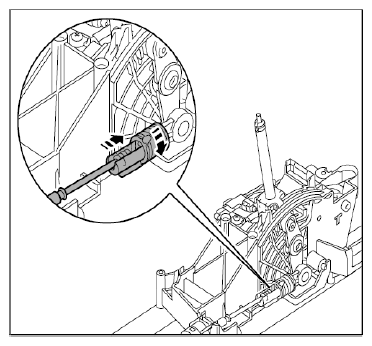

Open bayonet lock.

Fig 1: Opening Bayonet Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

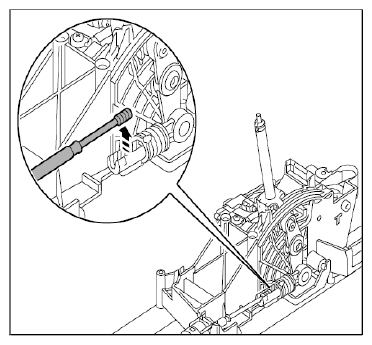

Detach adjustment pins.

Fig 2: Disengaging Selector Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

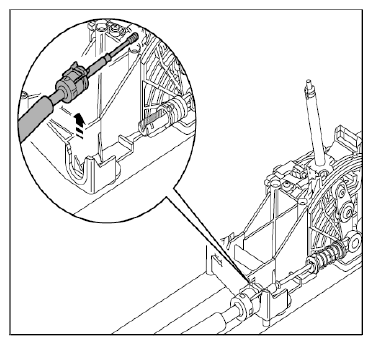

Unclip support bracket at selector frame.

Fig 3: Unclipping Support Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

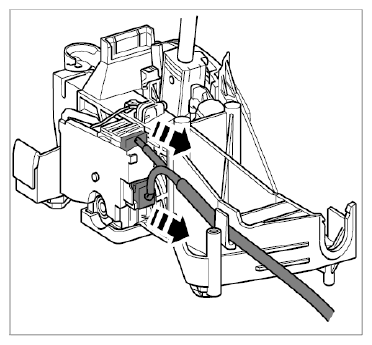

Disconnect electric plug on selector frame.

Fig 4: Removing Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

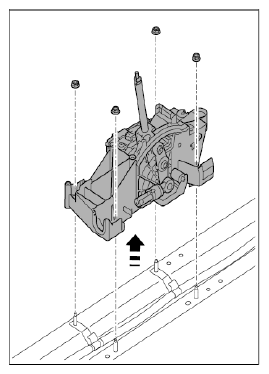

Undo the nuts and lift selector frame up and out.

Fig 5: Removing Selector Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
