Removing Selector Knob

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove selector knob.

    Turn twist lock anti-clockwise and pull selector knob up and off.

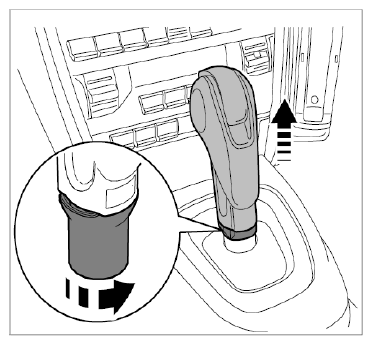

    Fig 1: Releasing Selector Knob
    G09824846Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    The ignition key must be in position 1 before the locking button can be pressed.
