Removing Selector Knob

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The ignition key must be in position 1 before the locking button can be pressed.

Press locking button and release lug under the locking button in direction of travel using an Allen key, for example.

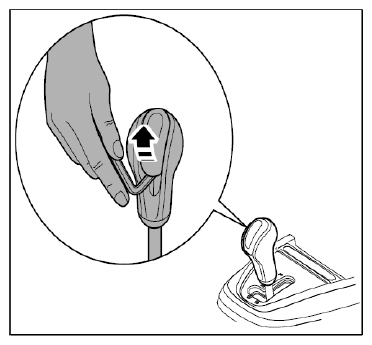

Fig 1: Levering Locking Button Off
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off locking button against the direction of travel.

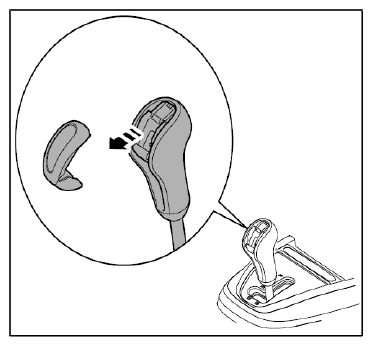

Fig 2: Pulling Off Locking Button
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use a screwdriver to lever the spring clip out of the lock.

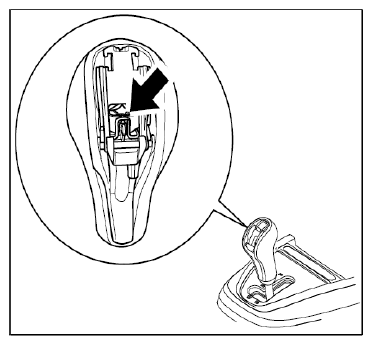

Fig 3: Detaching Spring Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull selector knob up and off the selector lever.

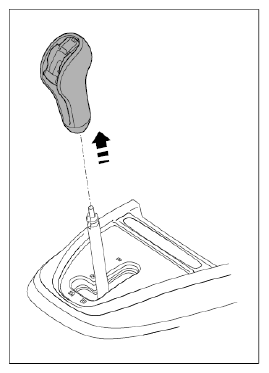

Fig 4: Removing Selector Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
