Topping Up ATF

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Fill level too low

Risk of damage to components.

→ Do not start the engine.

→ Do not tow the vehicle.

Information

To undo and tighten the cap nut for the charging valve, counter with a ring wrench!

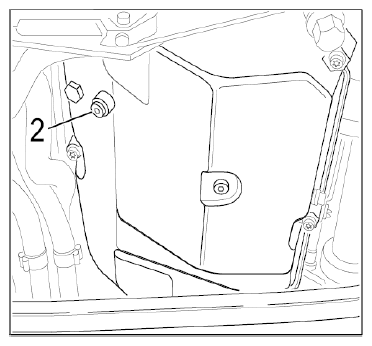

Unscrew control screw -2- .

Fig 1: Identifying ATF Control Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

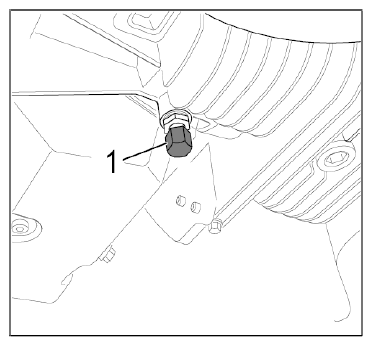

Screw off cap nut -1- for the charging valve.

Fig 2: Identifying ATF Cap Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

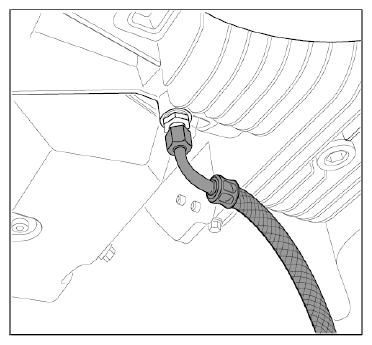

Screw connection hose 95071 onto charging valve.

Fig 3: Connecting Hose Onto ATF Charging Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Top up ATF through the charging valve until ATF emerges at the inspection bore.
