Removing and installing sensor for ParkAssistent: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always fit the isolating ring (B in Fig 1 ) before installing the sensor (A in Fig 1 )- The smooth surface of the isolating ring faces the sensor.

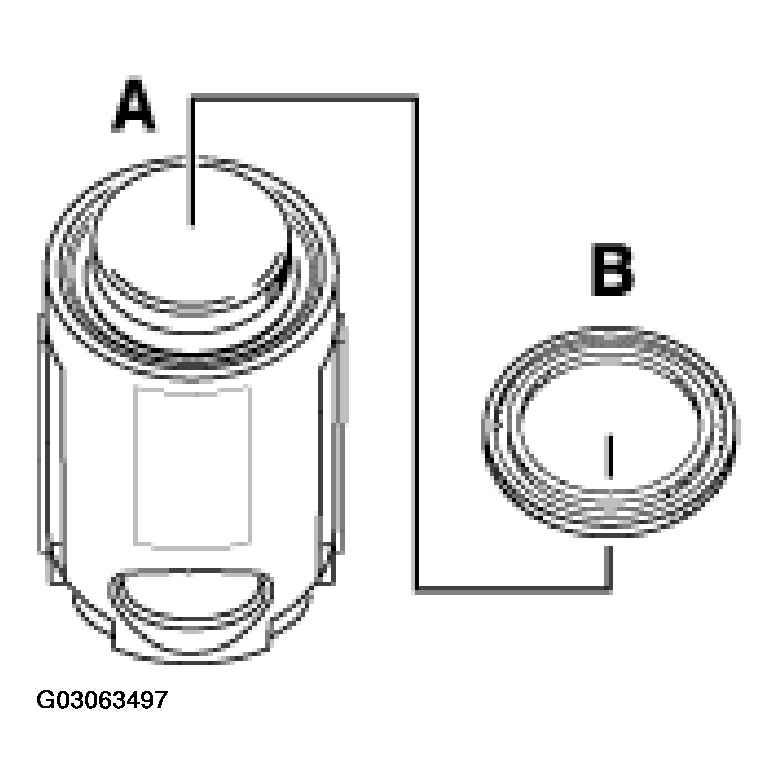

Fig 1: Identifying Isolating Ring & Sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fit isolating ring and push sensor into the sensor housing.
Slide retaining spring over the sensor housing and press on until it meets the stop.
Engage electrical plug connections and install fit rear spoiler.

NOTE:

The electrical plug connection in the vehicle must always point to the centre of the vehicle. Plug connection with marking (white adhesive tape) on the wiring harness always connected to outer left sensor.
