Removing Belt Tensioner

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Caustic fluids

Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

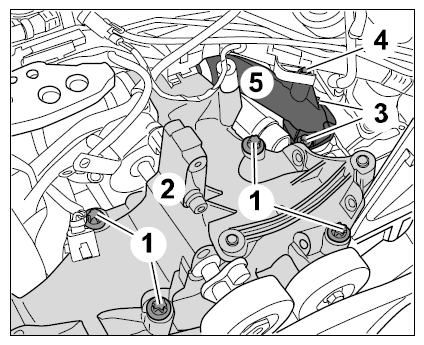

Remove unit carrier.
1. 1.1. Remove coolant flange -5- .
  Unscrew M6 screw -4- on cable rail.

  Unscrew M6 x 20 screws -3- and take off coolant flange.

  Fig 1: Identifying Unit Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Unscrew four M10 x 60 screws -1- and remove unit carrier -2- .

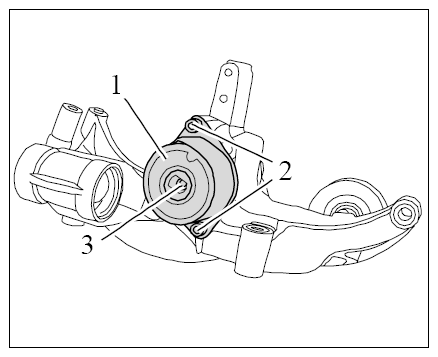

Remove belt tensioner.
Unscrew M6 x 16 screw -3- and two M8 x 16 screws -2- and pull belt tensioner -1- off the tensioning lever.

Fig 2: Identifying Belt Tensioner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
