Removing Dual-Mass Flywheel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

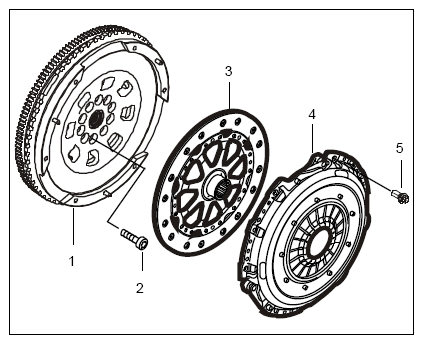

Component overview

Dual-mass flywheel (DMF)
Internal serration screw, M10 x 29, 10 ea.
Clutch plate
Clutch pressure plate
Cheese head bolt, M8

Fig 1: Overview Of Dual-Mass Flywheel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

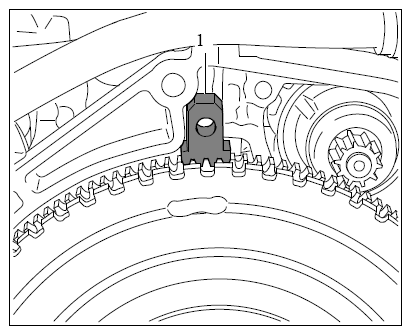

Position special tool toothed segment 9538/1 -1- for countering at the starter ring gear and place it on the cast strut.

Fig 2: Identifying Toothed Segment Position For Loosening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Removing and installing flywheel
- Leaks
- Risk of damage to the flywheel and adjacent components
→ Be very careful during removal and installation.

→ Get another person to help because of the weight.
Loosen and unscrew ten internal serration screws (M10 x 29) on the flywheel. Carefully remove the flywheel (it is quite heavy - so be careful).
1. 2.1. Replace internal serration screws.
Information

Check the friction surface of the flywheel. The flywheel must be replaced if it is damaged or discolored.
Visually inspect the friction surface on the dual-mass flywheel.
