Installing Catalytic Converter - Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

Fit the catalytic converter (cylinder bank 4-6) on the removed rear silencer, but do not tighten the clamp yet.
Fit the rear silencer together with the catalytic converter (cylinder bank 4-6) on the catalytic converter on cylinder bank 1-3, but do not tighten the clamp yet.
1. 2.1. Get another person to help you do this!
Replace the metal seal between the catalytic converter and exhaust manifold.
1. 3.1. Slide the seal over the threaded bolts as far as the sealing face on the exhaust manifold.
Slide the catalytic converter (cylinder bank 4-6) onto the studs on the turbocharger -arrow 2- .
1. 4.1. Get another person to support the rear silencer.

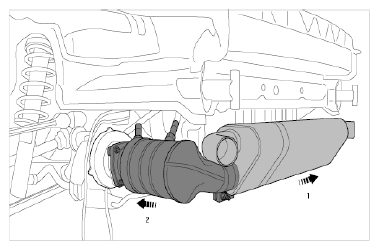

  Fig 1: Installing Rear Silencer/Catalytic Converter (Cylinder Bank 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the catalytic converter.
1. 5.1. Screw in four new M8 fastening nuts (a/f 13) -1- on the catalytic converter flange of the turbocharger and tighten uniformly.
  Tightening torque same as cylinder bank 1-3

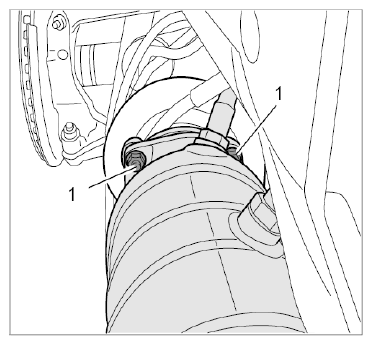

  Fig 2: Identifying Turbocharger Flange Nuts (Cylinder Bank 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Secure the rear silencer.

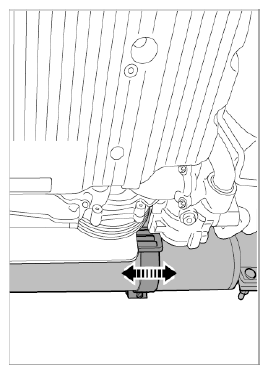

  1. 6.1. Slide two restraining straps on the rear silencer onto the holder -arrow- .

    Fig 3: Sliding Restraining Straps On Rear Silencer Onto Holder
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 6.2. Position restraining straps with M8 cheese head bolts -2-.

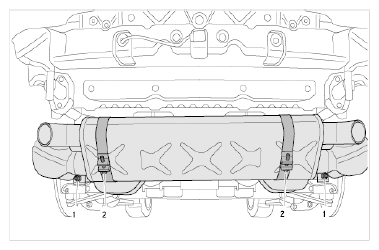

  Fig 4: Identifying Rear Silencer Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 6.3. Tighten both cheese head bolts.
  Tightening torque same as cylinder bank 1-3
Tighten the clamps (M10 screw, a/f 15) -1- at the connection points between the rear silencer and catalytic converters.
Route electric lines for oxygen sensors.
1. 8.1. Guide oxygen sensor lines at the side of the engine to the plug connections -1 and 2- in the engine compartment and join the connectors.

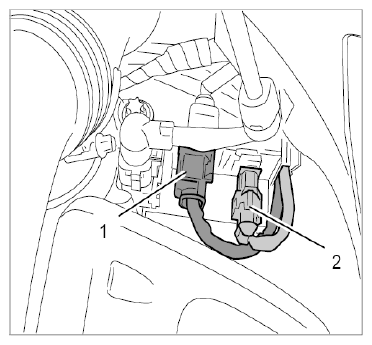

  Fig 5: Identifying Oxygen Sensor Connectors And Cylinder Bank (4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 8.2. Clip oxygen sensor lines -1 and 2- into the line brackets -arrows- .

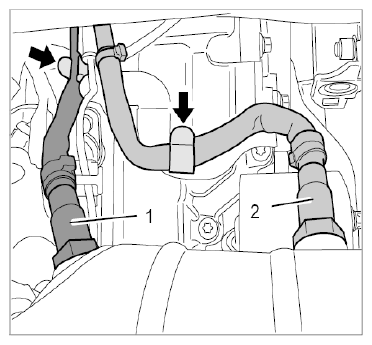

  Fig 6: Locating Oxygen Sensors To Catalytic Converter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
