Installing Secondary-Air Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Apply a light coating of "Kluber Syntheso Glep" grease (Porsche Part No. 000.043.204.68) on the rubber mountings for the secondary-air pump.
1. 1.1. To make it easier to fit the fastening screws, grease one side of the washers for the fastening screws lightly and slide the greased side onto the screw.
Guide the secondary-air pump into the engine compartment and push it onto the studs.
Position the cable plug and check that the electric line is not trapped under the secondary-air pump!
Fit and tighten two external Torx screws (E10, M6 x 12) -1- on the holder.
→ Tightening torque: 10 Nm (7.5 ft. lb.)

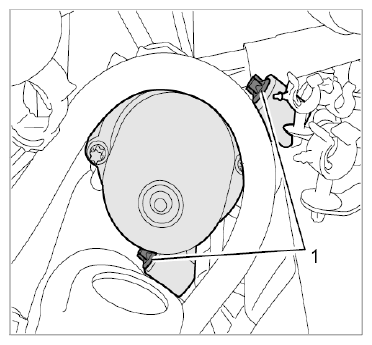

Fig 1: Identifying Secondary-Air Pump And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plug and clip it in at the holder.

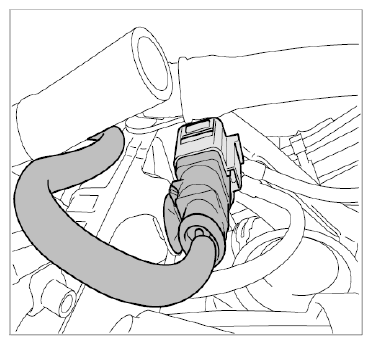

Fig 2: Identifying Cable Plug And Secondary-Air Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the fuel line -1- and vacuum line -2- in the engine compartment and clip them into the line bracket.

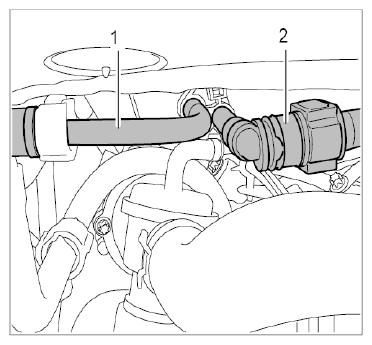

Fig 3: Identifying Fuel And Vacuum Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
