Removing Secondary-Air Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove secondary-air pump.
1. 1.1. Unclip vacuum and fuel lines from the line bracket and secure to the coolant reservoir using a tie-wrap.

  Fig 1: Identifying Vacuum And Fuel Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Pull off air hose -2- on secondary-air pump -1- .
  Press rapid-action coupling together and pull off the released air hose -2- .

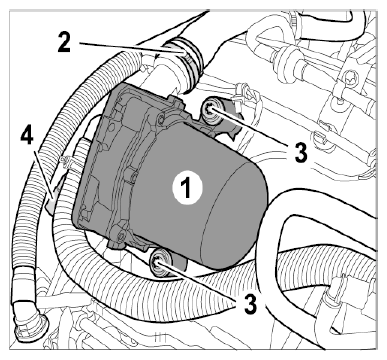

  Fig 2: Removing/Installing Secondary-Air Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Remove screws -3- .
4. 1.4. Disconnect electric plug connection -4- .
5. 1.5. Carefully remove secondary-air pump -1- .
