Installing Secondary-Air Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install secondary-air pump.
1. 1.1. Insert secondary-air pump -1- .
  Guide secondary-air pump -1- through between the coolant reservoir and intake-air distributor.

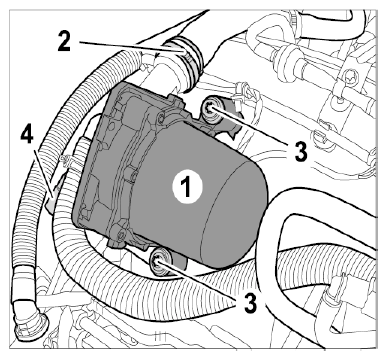

  Fig 1: Removing/Installing Secondary-Air Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Connect cable plug -4- to secondary-air pump.
3. 1.3. Fit and tighten screws -3- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)
4. 1.4. Attach air hose -2- to secondary-air pump -1- .
  Rapid-action coupling must lock with an audible click.
5. 1.5. Open tie-wrap and move lines into installation position.

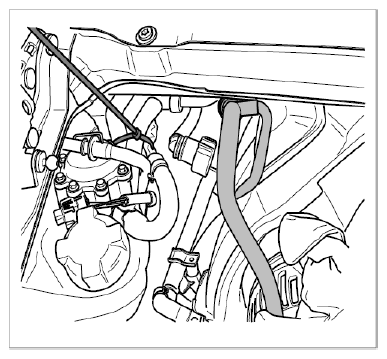

  Fig 2: Identifying Vacuum And Fuel Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
