Installing Secondary-Air Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit secondary-air pump in the bracket.

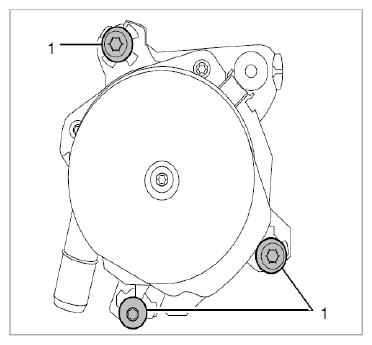

1. 1.1. Fit and tighten three internal Torx screws (M6 x 50) -1- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)

  Fig 1: Identifying Secondary-Air Pump To Holder Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

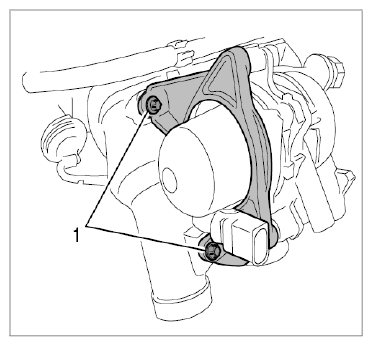

Position secondary-air pump with bracket on the intake-air distributor and holder.

Fig 2: Positioning Secondary-Air Pump To Intake-Air Distributor Holder)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit bracket with secondary-air pump.

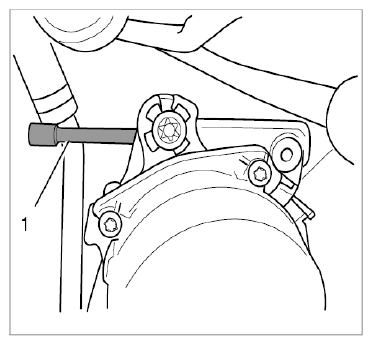

1. 3.1. Fit top M6 screw on the holder (using a 1/4-inch socket-wrench insert with a magnet (Torx E10) and a long extension -1- ).

  Fig 3: Identifying Top Screw On Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

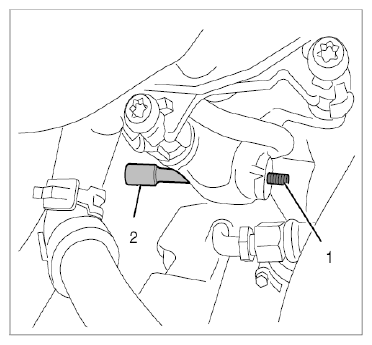

2. 3.2. Fit bottom M6 screw -1- on the holder (using tool -2- as in Step 3.1).

  Fig 4: Identifying Bottom Screw On Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

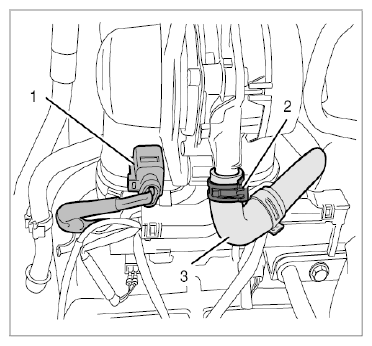

Fit cable plug -1- and secondary air line -3- .

Fig 5: Identifying Secondary Air Line And Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
