Removing Control Box

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Remove clamp -3- on connecting hose -2- and pull off hose.

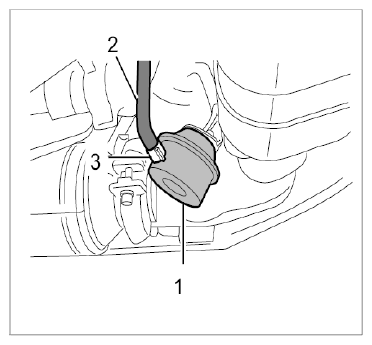

Fig 1: Identifying Control Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The ball socket is preset and must not be loosened.
  - The control box is supplied as a complete spare part and includes the push rod, ball socket and decoupling plate as shown.

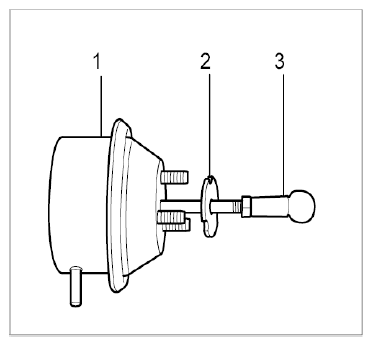

    Fig 2: Identifying Control Box - Spare Part
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove control box and holder.
1. 2.1. Lift off ball socket -1- on the flap lever. Spray with anti-rust agent if necessary.
2. 2.2. Before loosening the fastening screws, spray with anti-rust agent and heat them if necessary.
3. 2.3. Carefully loosen and unscrew two M6 fastening screws -2- and remove the control box and holder.

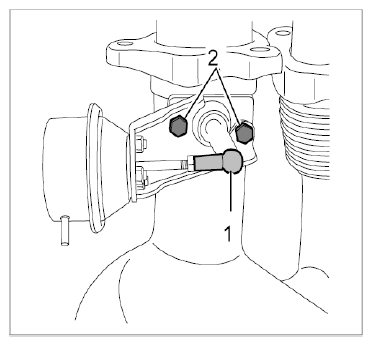

  Fig 3: Identifying Control Box/Holder Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew three M5 lock nuts -2- and pull the control box -1- out of the holder.
1. 3.1. Check the installation position of the ball socket with respect to the position of the ball joint on the exhaust flap.

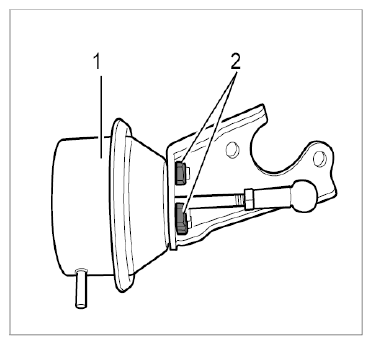

  Fig 4: Identifying Control Box/Holder Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
