Installing Control Box

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The ball socket is preset and must not be loosened.
- The control box is supplied as a complete spare part and includes the push rod, ball socket and decoupling plate as shown.

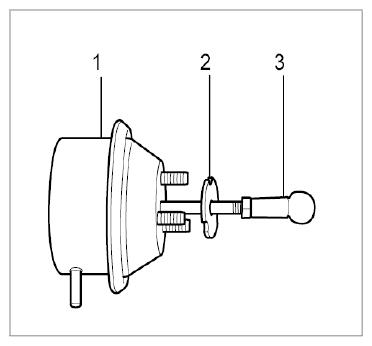

  Fig 1: Identifying Control Box - Spare Part
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

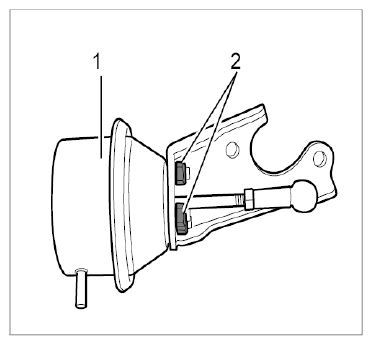

Secure the control box -1- using three new M5 lock nuts -2- .
→ Tightening torque: 6 Nm (4.5 ft. lb.)

Fig 2: Identifying Control Box/Holder Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the control box and holder on the connecting tube.
1. 2.1. Coat M6 fastening screws lightly with high-temperature grease.

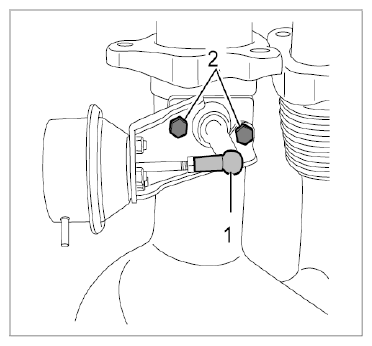

2. 2.2. Fit holder and control box using the screws -2- and tighten screws.
  → Tightening torque: 10 Nm (7.5 ft. lb.)

  Fig 3: Identifying Control Box Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

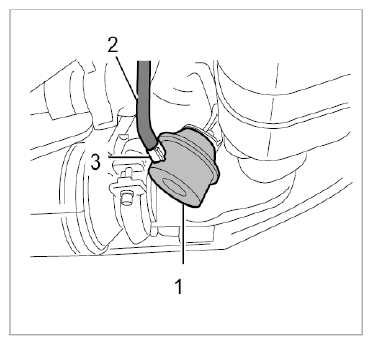

Fit ball socket -1- on the ball joint on the flap lever.
Attach connecting hose -2- and fit a new clamp -3- .

Fig 4: Identifying Control Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
