Checking Control Boxes For Exhaust Flaps

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Perform the exhaust flap function test in two stages.
1. Manual test:
Check linkage on the control box by sliding it to and fro -direction of arrow- to see if it moves smoothly.

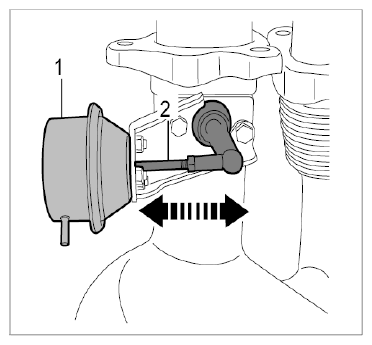

Fig 1: Checking Control Box With Linkage
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

A second person will be required to assist during the electronic test.
1. 2. Electronic test:
Allow engine to run at idle speed.
Raise the vehicle.
Press the Sport mode button several times on the center console in the passenger compartment. This activates or deactivates the flap function.
1. 5.1. At the same time, a second person visually inspects the mechanical motion of both linkages and the change in exhaust noise.
