Removing Tailpipe Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

If twin-tailpipe covers are installed (sports exhaust system, I-no. 176), the cheese head bolt (hexagon socket) on the cast aluminum cover must not be loosened.

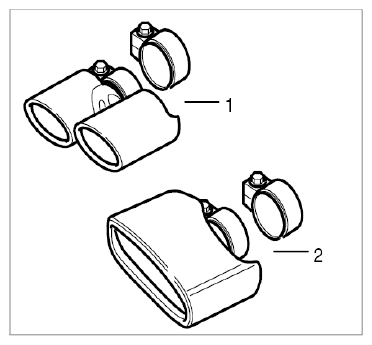

Overview of tailpipe covers with welded ball clamp and replacement clamp:

Carrera tailpipe cover
Carrera S tailpipe cover

Fig 1: Identifying Tailpipe Covers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spray threaded connection and sliding base with anti-rust agent before removing tailpipe cover.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

Information
- Replace the ball clamp on the tailpipe cover whenever it is opened.
- When removing the tailpipe cover for the first time, remove the spotweld on the original clamp and fit a new clamp on the tailpipe cover (do not weld it).

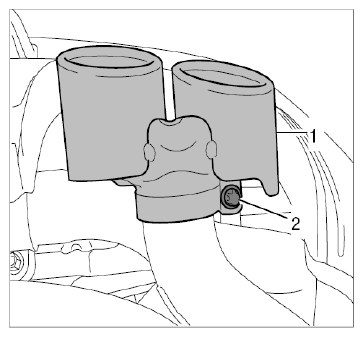

Unscrew the fastening screw -2- on the ball clamp.

Fig 2: Identifying Fastening Screw On Tailpipe Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open up the ball clamp and pull the tailpipe cover -1- off the tailpipe.
Remove spotweld on the clamp and replace the clamp.
