Installing Tailpipe Cover - Speedster/Classic

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Observe specified dimensions for installation position with respect to rear apron.

Information

If the engine mountings (hydraulic mounts) are to be replaced, the gap dimension to be set with respect to the upper rear apron is reduced by 1.5 mm because of the settling behavior of the mountings

Grease sliding bases and silencer supports lightly with Optimoly HT (Part No. 000.043.004.00).
Slide the tailpipe cover onto the flange on the rear silencer.

Align the tailpipe cover with respect to the rear apron following the specifications in the table below.

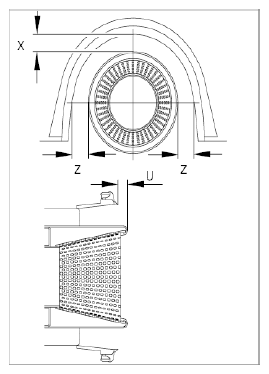

Fig 1: Aligning Tailpipe Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Item	Designation	Dimension	Explanation
U	Projection with respect to top of rear apron	10 mm	Projection
X	Gap with respect to top of rear apron	22 mm	Gap dimension
Z	Gap from side of rear apron	19 mm	Gap dimension

Tighten external Torx screw (M8) -1- on the clamp -2- . → Tightening torque: 30 Nm (22 ft. lb.)

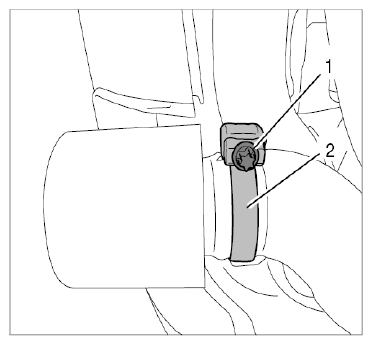

Fig 2: Identifying Tailpipe Cover Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
