Replacing Threaded Bolts

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

These repairs can only be carried out on rear silencers with Part No. 997.111.027.80.

Pre-treat threaded pin with anti-rust agent.
Use Dilavar Stud Removal Tool Nr.75 to unscrew the threaded pin on the silencer -1- .
1. 2.1. Position removal tool -2- on the threaded pin and tighten by turning it clockwise at the small hexagon.
2. 2.2. Slowly unscrew the threaded pin by turning it anti-clockwise at the large hexagon.

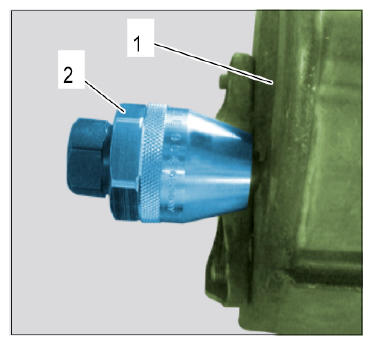

  Fig 1: Removing Threaded Pin Using Tool
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit new M8 threaded pin with the short threaded side in the silencer.
1. Threaded pin, dimension X = 22 mm , short threaded side in the silencer

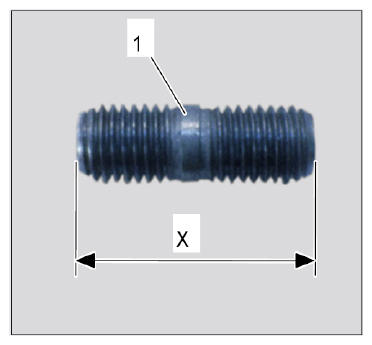

  Fig 2: Identifying Threaded Pin Dimension (M8 X 22)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit threaded bolt.
1. 4.1. Screw on two M8 lock nuts -1- and tighten them against each other.
2. 4.2. Tighten threaded bolt.
  → Tightening torque: 22 Nm (16 ft. lb.)

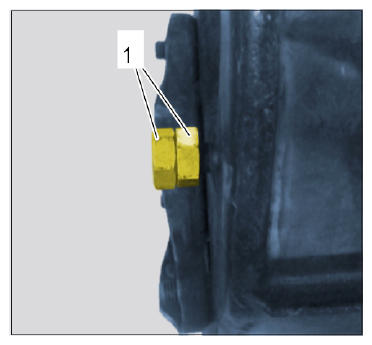

  Fig 3: Installing Threaded Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Procedure for broken threaded pins that cannot be removed using the removal tool:
Carefully drill out broken threaded pins and re-cut the thread if necessary.
1. 5.1. Fit the new threaded pin as described above.
