Component Overview For Rear Silencer

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

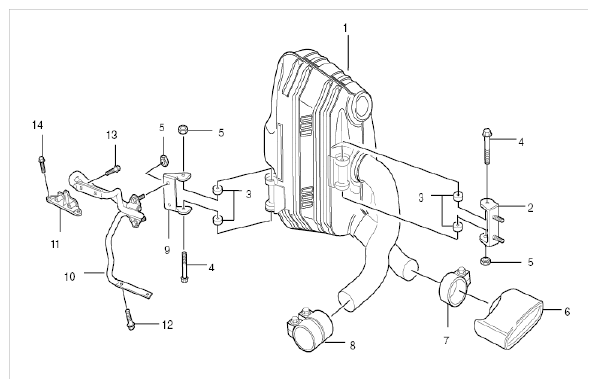

Fig 1: Overview Of Rear Silencer Component

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear silencer; check welded areas for cracks
Rear holder
Mount for front and rear holder (stop-choc element)
Fastening screw (M8 x 110) for holder → Tightening torque: 23 Nm (17 ft. lb.)
Collar nut (lock nut) → Tightening torque: 23 Nm (17 ft. lb.)
Tailpipe (3.6-Liter engine)
Tailpipe clamp, always replace after opening. → Tightening torque: 30 Nm (22 ft. lb.)
Clamping sleeve → Tightening torque: 23 Nm (17 ft. lb.)
Front holder
G-holder for rear silencer
Silencer bracket to cylinder head
Screw (M8 x 25) for bottom G-holder → Tightening torque: 23 Nm (17 ft. lb.)
Screw (M8 x 12) for G-holder to bracket → Tightening torque: 23 Nm (17 ft. lb.)
Screw (M8 x 25) securing bracket to cylinder head → Tightening torque: 23 Nm (17 ft. lb.)

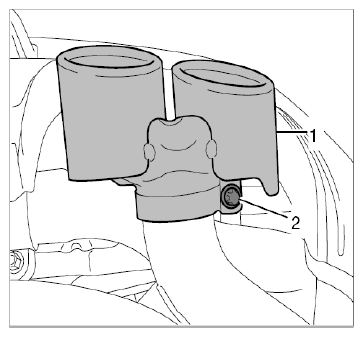

Remove tailpipe cover -1- if the silencer has to be replaced.
→ 263519 REMOVING AND INSTALLING TAILPIPE COVER .
1. 1.1. Unscrew M8 Torx screw -2- on the ball clamp, open the ball clamp slightly and pull off the cover.
2. 1.2. Replace ball clamp by removing the spotweld and removing the clamp.

  Fig 2: Identifying Fastening Screw On Tailpipe Cover (3.8-Liter Engine)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

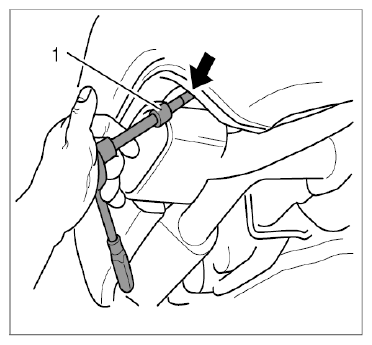

Loosen M8 fastening nuts -1- on the clamping sleeve. If corroded, heat the sleeve or spray it with rust solvent.

Fig 3: Identifying Clamping Sleeve Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen threaded connection on rear silencer holder at the rear.
1. 3.1. Unscrew two M8 hexagon nuts -1- on the holder -2- .
  Tool recommendation: commercially available 3/8-inch ratchet with extension, universal joint and socket-wrench insert (a/f 13).

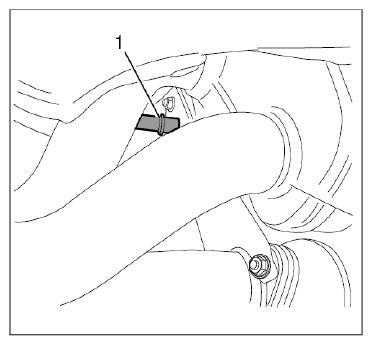

  Fig 4: Identifying Rear Silencer Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

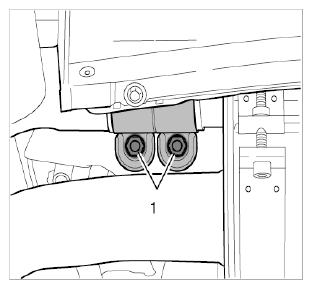

  Fig 5: Removing Rear Silencer Mounting Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

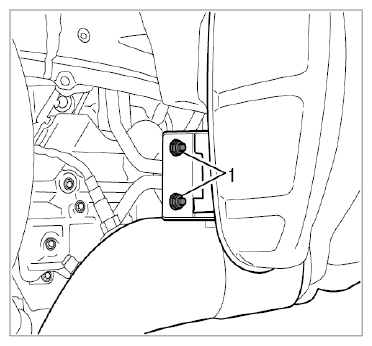

  Fig 6: Identifying Lock Nut On Rear Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Unscrew two M8 hexagon nuts -1- on the rear silencer holder at the front.

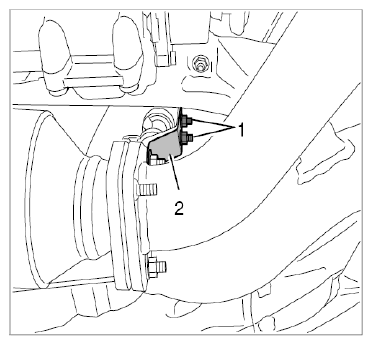

  Fig 7: Identifying Front Silencer Mounting Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide clamping sleeve onto the main silencer pipe and lift the silencer towards the wheel housing and out of the vehicle.
