Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear wheel. Use a Socket Wrench Insert P 300  to avoid damage to the wheel rims → 440519 REMOVING AND INSTALLING WHEEL - section on "Removing".
  2. Remove strut for rear apron. Unscrew fastening screws -1 and 2-  and remove strut.

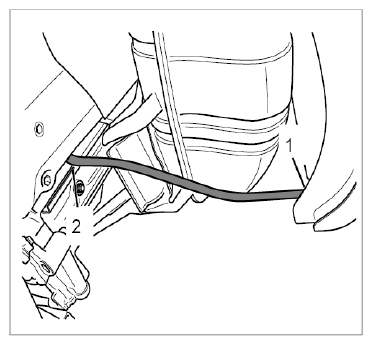

    Fig 1: Identifying Rear Spoiler Support
    G09818321Courtesy of PORSCHE CARS NORTH AMERICA, INC.
