Component Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

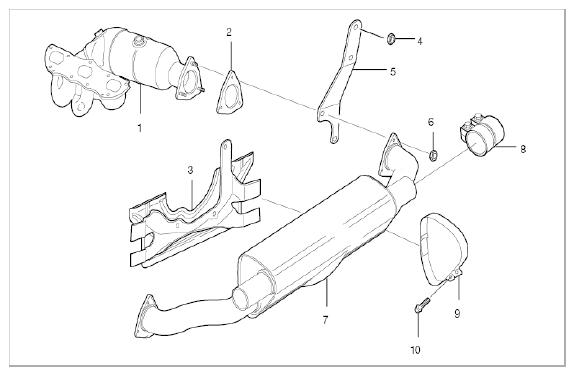

Fig 1: Overview Of Front Silencer Component

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold with catalytic converter
Always replace metal seal on three-hole flange
Holder for front silencer
Collar nut M8 (squeeze-lock nut)
Holder for rear silencer with heat protection
M8 lock nut, always replace
Front silencer
Clamping sleeve, replace collar nut if necessary
Holding clamp for front silencer
Cheese head bolt, M8 x 50

Loosen threaded connection at the three-hole flange at the left and right on the exhaust manifold.
1. 1.1. Screw off the three M8 lock nuts -1- .

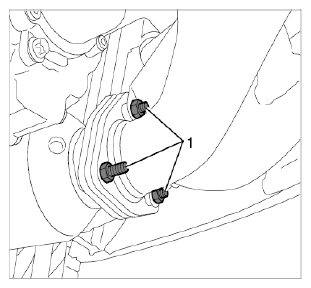

  Fig 2: Identifying Three-Hole Flange On Exhaust Manifold
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen mountings on the front silencer -1- .
1. 2.1. Loosen clamping sleeves. To do this, loosen two M8 hexagon nuts -2- on each sleeve.
2. 2.2. Loosen two M8 hexagon socket head bolts -3- on the retaining straps. The front silencer can remain in the vehicle.

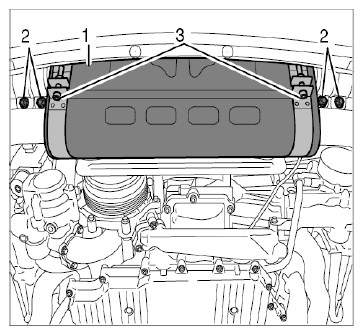

  Fig 3: Identifying Front Silencer Mountings
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
