Securing Front Silencer

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Apply a light coating of high-temperature grease (e.g. Optimoly HT, Part No. 000.043.004.00) on the clamp or pipe adapter before installation .

Align the front silencer -1- .
1. 1.1. Tighten cheese head bolts (hexagon socket a/f 6, M8 x 50) -3- on the retaining straps so that the silencer can still be moved.

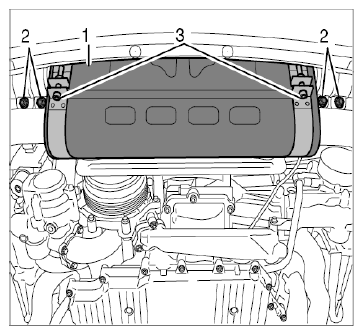

  Fig 1: Identifying Front Silencer Mountings
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Position clamping sleeves and fit the two M8 hexagon nuts -2- . Pay attention to the installation position.

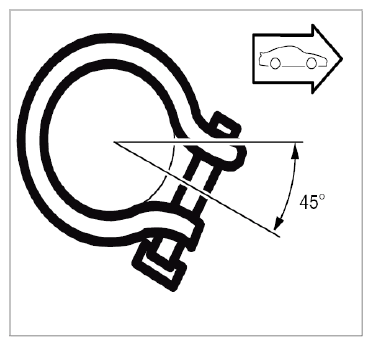

  Fig 2: Identifying Clamp Sleeve Installation Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten M8 threaded joint on clamping sleeves.
→ Tightening torque: 23 Nm (17 ft. lb.)
1. 2.1. Tighten M8 cheese head bolts for the retaining straps to the prescribed torque.
  → Tightening torque: 15 Nm (11 ft. lb.)
Check installation position of front silencer again.
