Removing Heat Shield
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
- Support engine with a mounting jack.
- Screw off M12 collar nuts on the two engine mountings.
- Carefully lower the engine.
- Remove heat shields at the sides by screwing off the two speed nuts on each one → 635019 REMOVING AND INSTALLING REAR BUMPER - "Removing" section.

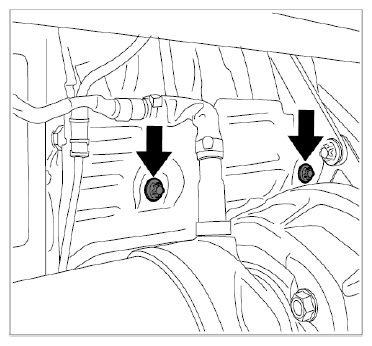

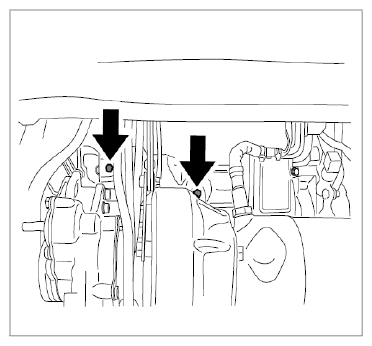

- Unscrew two Torx screws (M6 x 12) -arrows- and remove heat shields.
