Removing Heat Shield On Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Unscrew two fastening screws (E10, M6 x 12) -arrows- .
Tool recommendation: Ratchet wrench, a/f 8 with E10 insert from tool set insert for torque wrench 9792

Fig 1: Locating Heat Shield On Cylinder Bank (4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide the heat shield down at a slant in direction of travel and remove it -arrows- .

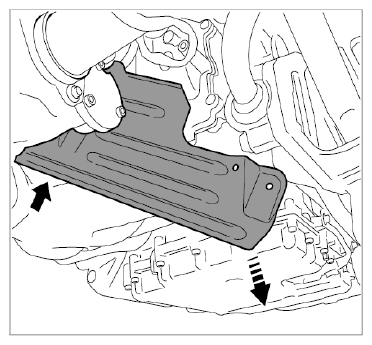

Fig 2: Removing Heat Shield On Cylinder Bank (4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
