Installing Heat Shield On Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Slide the heat shield at a slant between the turbocharger and cylinder head from underneath.

Fig 1: Fitting Heat Shield On Cylinder Bank (4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

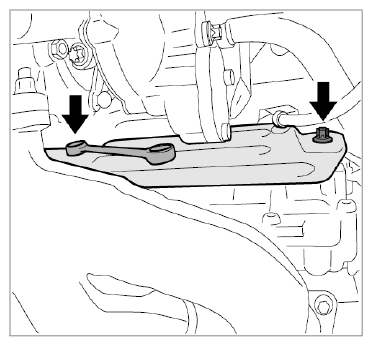

Fit and tighten two fastening screws (E10, M6 x 12) -arrows- .
→ Tightening torque: 10 Nm (7.5 ft. lb.)

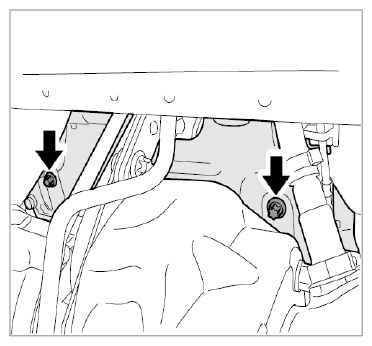

Fig 2: Locating Heat Shield On Cylinder Bank (4-6)
