Installing Heat Shield On Cylinder Bank 1-3

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Slide heat shield between the turbocharger and cylinder head and secure with two fastening screws (E10, M6 x 12) -1- .
Tool recommendation: Ratchet wrench, a/f 8 with E10 insert from tool set insert for torque wrench 9792
1. 1.1. Tighten the screws. To do this, insert the E10 insert into the torque wrench.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
Clip in electric line -2- for exhaust temperature sensor at the heat shield.

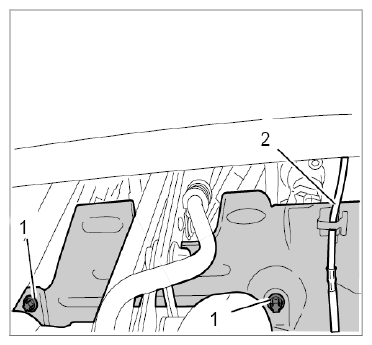

Fig 1: Identifying Heat Shield On Cylinder Bank (1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit intake air line with electronic adjuster cover.
1. 3.1. Grease O-ring on the intake air line with a light coating of Kluber Syntheso Glep (Part No. 000.043.204.68).
2. 3.2. Fit intake air line, fit cable plug on the electronic adjuster and fit cover using two external Torx screws (E10, M6 x 30).
3. 3.3. Tighten the screws.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
