Installing Heat Shield

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert heat shield and secure with two Torx screws (M6 x 12) -arrows- .
→ Tightening torque: 10 Nm (7.5 ft. lb.)

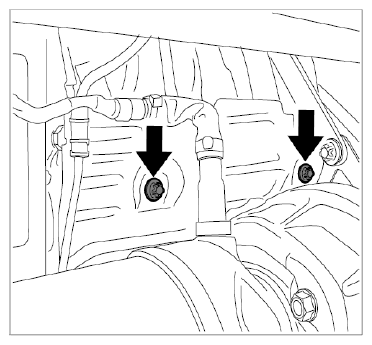

Fig 1: Locating Heat Shield On Cylinder Bank (1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

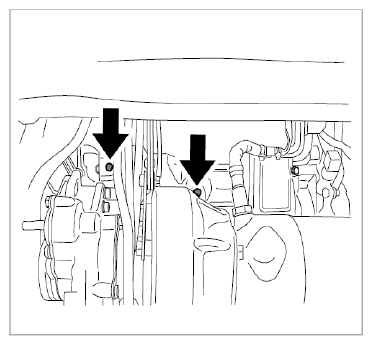

Fig 2: Locating Heat Shield On Cylinder Bank (4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Heat protection panels not fitted correctly
- Risk of damage to adjacent parts
→ Make sure the heat protection panels overlap correctly.

→ Replace damaged or deformed heat protection panels.

→ Check heat protection panels for deformation, secure fixing of the aluminum braided cord, cracks and missing or damaged fixing tabs.

→ At least 80% of the total sealing area must be sealed without gaps.
Fit heat protection panel at the side by screwing on and tightening two speed nuts.
→ 635019 REMOVING AND INSTALLING REAR BUMPER .

→ Tightening torque: 3.5 Nm (2.5 ft. lb.)
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
Lift the engine with the mounting jack.
Fit and tighten M12 collar nuts on the engine mountings.
→ Tightening torque: 85 Nm (63 ft. lb.)
Remove mounting jack.
