Removing Heat Shield - Upper Part Only

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper part of heat shield on side 1-3 -1-.
1. 1.1. Unclip blue oxygen sensor cable.
2. 1.2. Unscrew two outer Torx screws (M6 x 12) -2- .

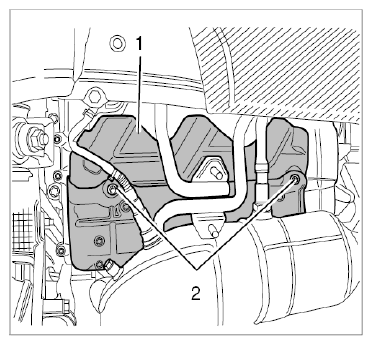

  Fig 1: Identifying Upper Part Of Heat Shield (1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Pull upper part of heat shield out diagonally in direction travel.

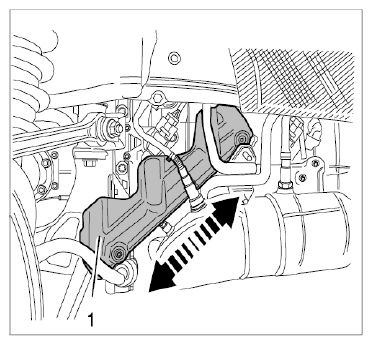

  Fig 2: Removing/Installing Upper Part Of Heat Shield (1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove upper part of heat shield on side 4-6 -1-.
1. 2.1. Unclip blue oxygen sensor cable -3- and loosen ground strap on the cylinder head. To do this, unscrew one M8 Torx screw -2- .

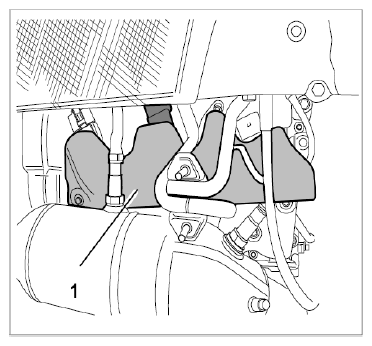

  Fig 3: Identifying Upper Part Of Heat Shield (4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Unclip oxygen sensor cable -2- and unplug ignition coil plug for cylinder 6 -1- .

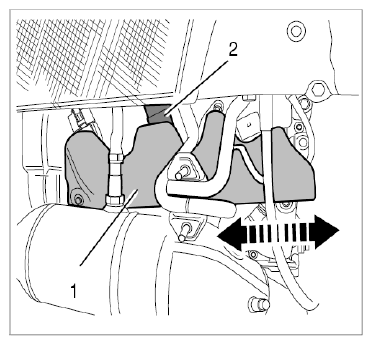

  Fig 4: Identifying Oxygen Sensor Cable And Ignition Coil Plug Cylinder 6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Unscrew two outer Torx screws (M6 x 12). Slide heat shield -1- downwards.

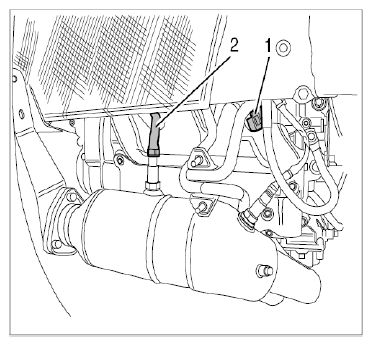

  Fig 5: Sliding Heat Shield Down
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Disconnect ignition coil plug for cylinder 5 and pull out upper part of heat shield in direction of travel.

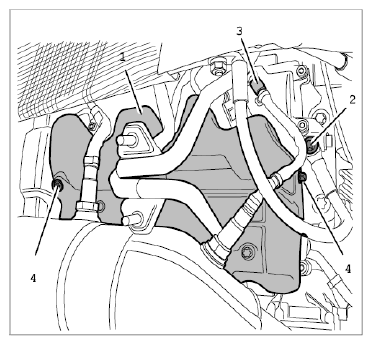

  Fig 6: Removing/Installing Upper Part Of Heat Shield
