Removing Heat Shield - Lower Part

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

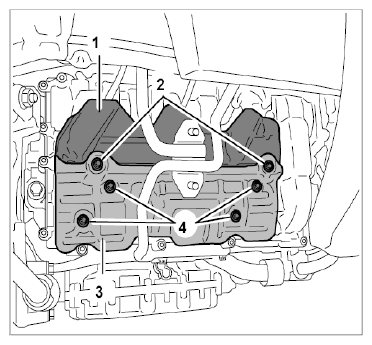

View of heat shield, side 1-3:

Upper part of heat shield
Two outer Torx screws, M6 x 12
Lower part of heat shield
Four outer Torx screws, M6 x 12

Fig 1: Identifying Heat Shield (Side 1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

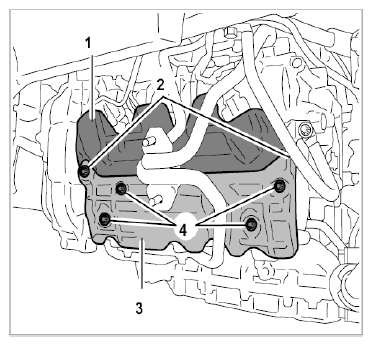

View of heat shield, side 4-6:

Upper part of heat shield
Two outer Torx screws, M6 x 12
Lower part of heat shield
Four outer Torx screws, M6 x 12

Fig 2: Identifying Heat Shield (Side 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove lower part of heat shield on side 1-3.
1. 1.1. Remove exhaust manifold 1-3.
  → 261019 REMOVING AND INSTALLING EXHAUST MANIFOLD WITH CATALYTIC CONVERTER .
2. 1.2. Remove holder for rear silencer 1-3. To do so, unscrew four M8 Torx screws and remove the holder.
  Two M8 x 12 screws at the top and two M8 x 25 screws at the bottom.
3. 1.3. Remove upper part of heat shield by unscrewing two outer Torx screws (M6 x 12) and taking out the heat shield.
4. 1.4. Unscrew four outer Torx screws (M6 x 12) and remove lower part of heat shield.
Remove lower part of heat shield on side 4-6.
1. 2.1. Remove exhaust manifold 4-6.
  → 261019 REMOVING AND INSTALLING EXHAUST MANIFOLD WITH CATALYTIC CONVERTER .
2. 2.2. Remove holder for rear silencer 4-6. To do so, unscrew four M8 Torx screws and remove the holder.
  Two M8 x 12 screws at the top and two M8 x 25 screws at the bottom.
3. 2.3. Remove upper part of heat shield by unscrewing two outer Torx screws (M6 x 12) and taking out the heat shield.
4. 2.4. Unscrew four outer Torx screws (M6 x 12) and remove lower part of heat shield.
