Installing Heat Shield - Upper Part Only

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install upper part of heat shield on side 1-3.
1. 1.1. Slide heat shield in past the rear silencer holder.

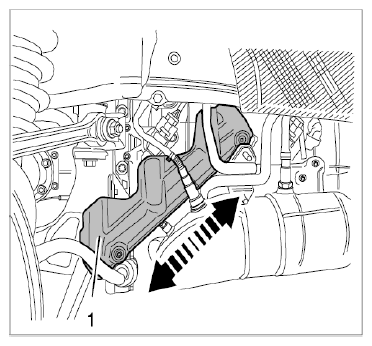

  Fig 1: Removing/Installing Upper Part Of Heat Shield (Side 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Position upper part of heat shield -1- , fit two outer Torx screws (M6 x 12) -2- and tighten to the specified torque.

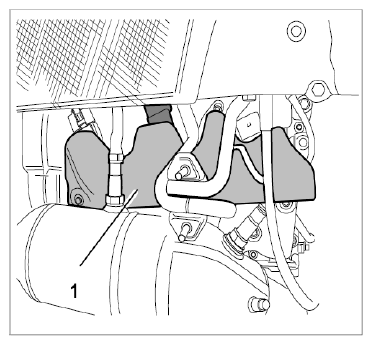

  Fig 2: Identifying Upper Part Of Heat Shield (Side 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Clip in blue oxygen sensor cable.
Install upper part of heat shield on side 4-6.
1. 2.1. Slide upper part of heat shield -1- past the rear silencer holder and fit loosely.

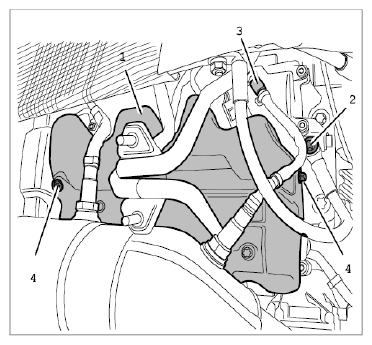

  Fig 3: Identifying Upper Part Of Heat Shield (Side 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Connect ignition coil plug for cylinders 5 and 6.
3. 2.3. Position upper part of heat shield -1- , secure with two outer Torx screws (M6 x 12) -4- and tighten screws to the specified torque.
  Fit ground strap on cylinder head using an M8 Torx screw -2- and tighten it. Clip in blue oxygen sensor cable -3- .

  → Tightening torque: 23 Nm (17 ft. lb.)

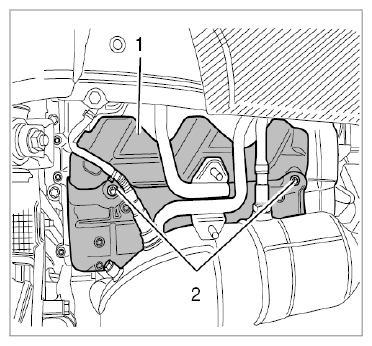

  Fig 4: Identifying Upper Part Of Heat Shield (4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Clip in oxygen sensor cable -2- .

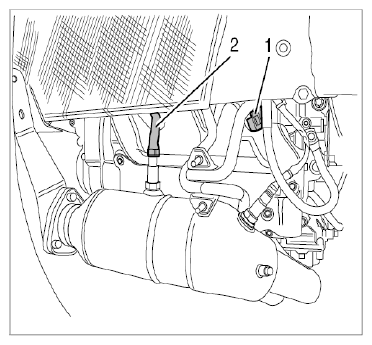

  Fig 5: Identifying Oxygen Sensor Cable And Ignition Coil Plug Cylinder 6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
