Installing Heat Shield - Lower Part

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Upper part of heat shield
Two outer Torx screws, M6 x 12 → Tightening torque: 10 Nm (7.5 ft. lb.)
Lower part of heat shield
Four outer Torx screws, M6 x 12 → Tightening torque: 10 Nm (7.5 ft. lb.)

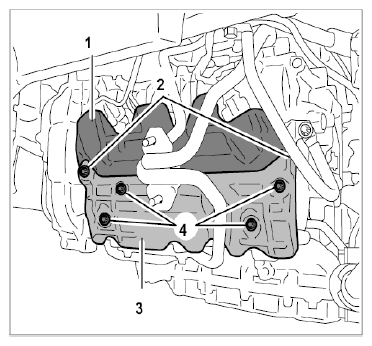

Fig 1: Identifying Heat Shield (Side 1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

View of heat shield, side 4-6:

Upper part of heat shield
Two outer Torx screws, M6 x 12
Lower part of heat shield
Four outer Torx screws, M6 x 12

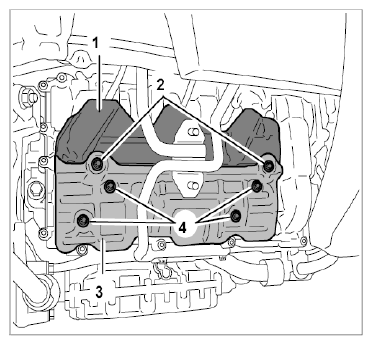

Fig 2: Identifying Heat Shield (Side 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install lower part of heat shield.
1. 1.1. Secure lower part of heat shield with four outer Torx screws (M6 x 12) and tighten screws to the specified tightening torque.
2. 1.2. Connect ignition coil plug for cylinders 5 and 6.
3. 1.3. Secure upper part of heat shield with two outer Torx screws (M6 x 12) and tighten screws to the specified torque.
Fit holder for rear silencer.
1. 2.1. Fit top holder using two Torx screws (M8 x 12).
2. 2.2. Fit bottom holder using two Torx screws (M8 x 25).
3. 2.3. Tighten the screws.
  → Tightening torque: 23 Nm (17 ft. lb.)
Install exhaust manifold.
→ 261019 REMOVING AND INSTALLING EXHAUST MANIFOLD WITH CATALYTIC CONVERTER .
