Installing Exhaust Manifold With Catalytic Converter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position exhaust manifold with a new seal on the cylinder head and secure with a screw.
    1. 1.1. Check positioning tabs on the seal.
  2. Fit the remaining eight hexagon-head bolts.
    1. 2.1. Fit and tighten screws evenly according to the specified tightening sequence -1 to 9-  .
    2. 2.2. Initial tightening:

      → Initial tightening: 25 Nm (19 ft. lb.)

    3. 2.3. Final tightening:

      → Final tightening: 33 Nm (24 ft. lb.)

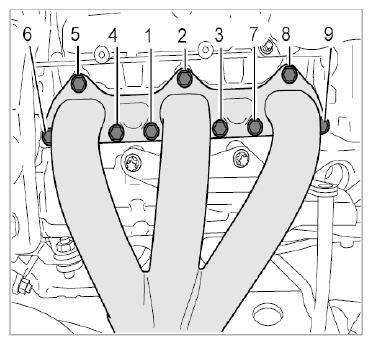

      Fig 1: Exhaust Manifold Screws Tightening Sequence
      G09818242Courtesy of PORSCHE CARS NORTH AMERICA, INC.
