Removing Exhaust Manifold

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Component overview

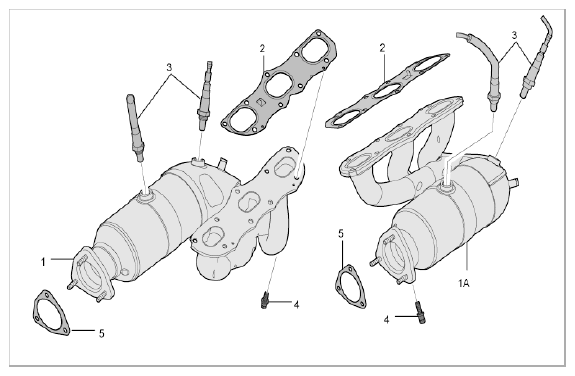

Fig 1: Overview Of Exhaust Manifold Component

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold with catalytic converter, side 4-6
1. 1A - Exhaust manifold with catalytic converter, side 1-3
Metal seal
Oxygen sensors
Fastening screw, M8 x 21
Metal seal for three-hole flange

Unscrew three M8 lock nuts -1- on the three-hole flange for the front silencer.
1. 1.1. The nuts must be replaced.

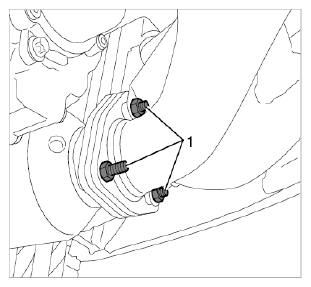

  Fig 2: Identifying Three-Hole Flange Lock Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew nine M8 x 21 external Torx fastening screws -2- and remove exhaust manifold.
1. 2.1. Remove and dispose of metal seal. The seal must be replaced.

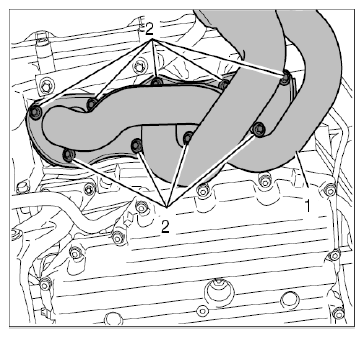

  Fig 3: Identifying Exhaust Manifold Fastening Screws (Side 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

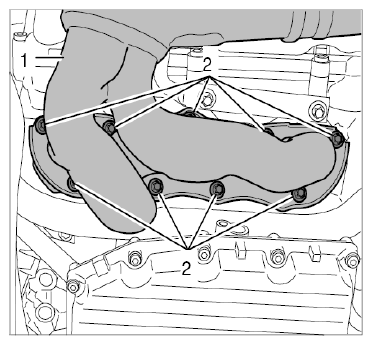

  Fig 4: Identifying Exhaust Manifold Fastening Screws (Side 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
