Tightening Specifications For Exhaust Manifold With Catalytic Converter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

First fit screws on the cylinder head and tighten according to the specified tightening sequence -1 to 9- .
→ Tightening torque: 30 Nm (22 ft. lb.)

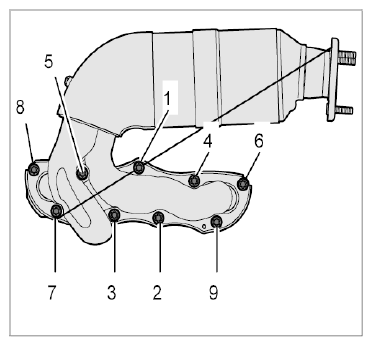

Fig 1: Exhaust Manifold With Catalytic Converter Screw Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Then tighten new M8 lock nuts -1- on the three-hole flange.
  → Tightening torque: 23 Nm (17 ft. lb.)

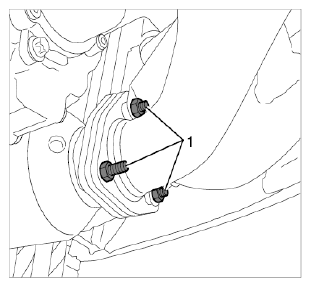

  Fig 2: Identifying Three-Hole Flange Lock Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
