Installing Exhaust Manifold - Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always replace seals.

Slide a new metal seal onto the studs on the turbocharger.
Fit exhaust manifold with new external Torx screws and hexagon nuts.
1. 2.1. Fit a new metal seal on the sealing face of the exhaust manifold.
2. 2.2. Press the turbocharger out slightly and slide the three-hole flange onto the studs on the turbocharger.
3. 2.3. Pre-position the exhaust manifold on the cylinder head with two new external Torx screws (E12, M8 x 27).
4. 2.4. Fit the other seven new screws on the cylinder head. → Exhaust manifold threaded joint

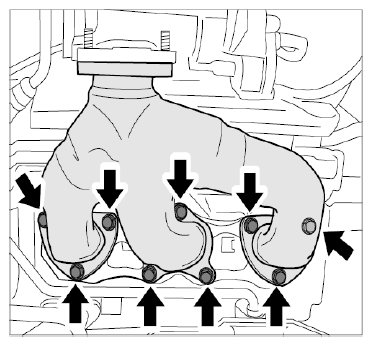

  Fig 1: Locating Exhaust Manifold Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 2.5. Fit three new M8 hexagon nuts (a/f 13) on the three-hole flange.
Fit and tighten external Torx screws on the exhaust manifold uniformly from the inside out.
Observe tightening sequence and specifications as for cylinder bank 1-3!

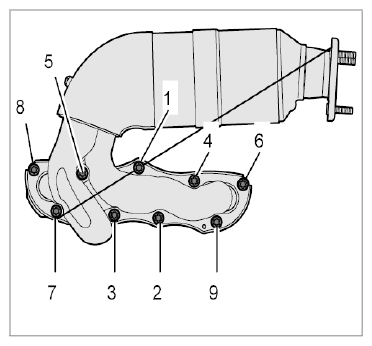

Fig 2: Exhaust Manifold With Catalytic Converter Screw Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten three M8 hexagon nuts (a/f 13) on the turbocharger flange for the exhaust manifold -arrows- .
Tightening torque as for cylinder bank 1-3!

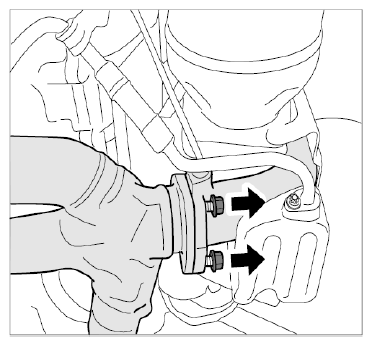

Fig 3: Loosening Exhaust Manifold Flange On Cylinder Bank (4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten external Torx screw (E12, M8 x 16) on the turbocharger holder → Holder for turbocharger 4-6 accessible through tailpipe opening .
→ Tightening torque: 23 Nm (17 ft. lb.)

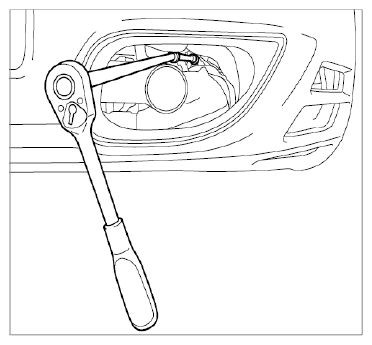

Fig 4: Tightening External Torx Screw On Turbocharger Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
