Installing Exhaust System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace lock nuts and turbocharger flange seal

Fit new seals on the turbocharger flanges.
Fit exhaust system and heat shields.
Route oxygen sensor lines provisionally.
Position restraining straps.
Fit cheese head bolts (M8 x 50) -arrows- on the restraining straps.

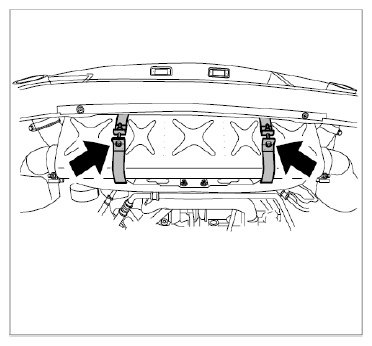

Fig 1: Locating Rear Silencer Restraining Straps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten M8 lock nuts -arrows- . → Tightening torque: 27 Nm (20 ft. lb. )
Fit and tighten Torx screws (M6 x 12) on the heat shields. → Tightening torque: 10 Nm (7.5 ft. lb. )

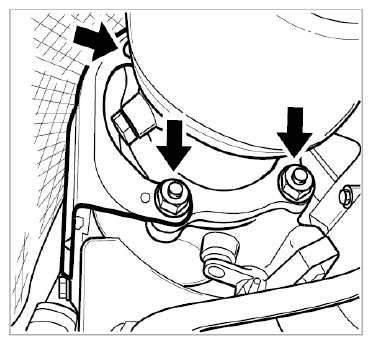

Fig 2: Locating Lock Nuts On Turbocharger Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route oxygen sensor lines and clip them into the corresponding holders.
