Checking Clutch Plate For Wear: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The clutch lining does not wear linearly over the service life of the clutch.
Due to the settling behavior of the clutch lining, more wear occurs at the beginning.
Pad thickness wear will decrease as mileage increases.

Information

Pad thickness measurement must only be done on the flanged side of the rivet head.

Place a commercially available depth gauge on the clutch lining -1- and measure the distance to the rivet head.

Fig 1: Measuring Lining Thickness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The wear dimension -X- measures 0.3 mm. If a smaller value is measured, the clutch drive plate must be replaced. When new the measured value is more than 1mm.

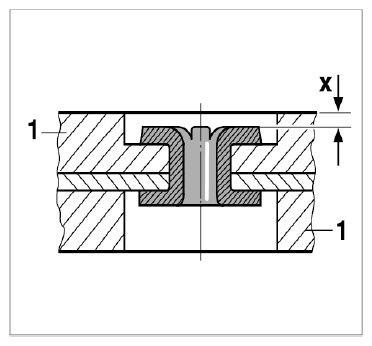

Fig 2: Sectional View Of Clutch Drive Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
