Removing Clutch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mounting parts, toothed segment P 201b  must be positioned on the studs and fastening screws must then be tightened in several stages and in diametrically opposite sequence. This prevents the pressure plate from becoming deformed.

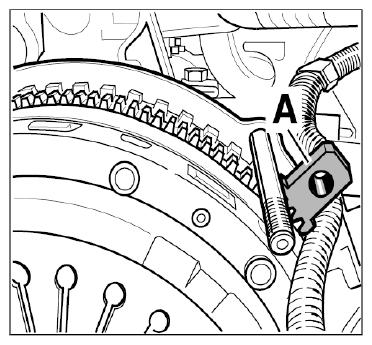

    Fig 1: Identifying Clutch Toothed Segment
    G09822370Courtesy of PORSCHE CARS NORTH AMERICA, INC.
