Installing Clutch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit drive plate into the guide joint (needle-roller bearing) using a centering mandrel 9102  .
  2. Mounting parts, toothed segment P 201b  must be positioned on the studs. Then fit the pressure place and tighten fastening screws in several stages and in diametrically opposite sequence. This prevents the pressure plate from becoming deformed.

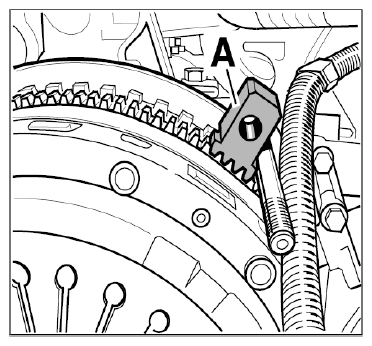

    Fig 1: Identifying Clutch Toothed Segment
    G09822371Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Pressure plate Fastening screws between pressure plate and flywheel Tightening torque 23 Nm (17 ftlb.)
  3. Centering mandrel 9102  and mounting parts, toothed segment P 201b  must be removed.
