Installing Guide Sleeve
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

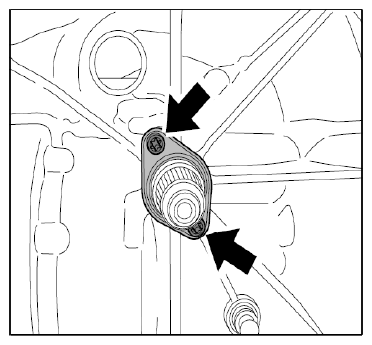

- Fit guide sleeve.
Apply a thin coat of Kluberalfa HM83-801 on the guide sleeve.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Guide sleeve |
|
Tightening torque |
24 Nm (18 ftlb.) |
|
|
- Grease the splines of the transmission input shaft.
Use Longtime 3EP grease.
