Removing Release Bearing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
The snap ring can be fitted only using a workshop press. Use a block of hardwood as a pressure piece.

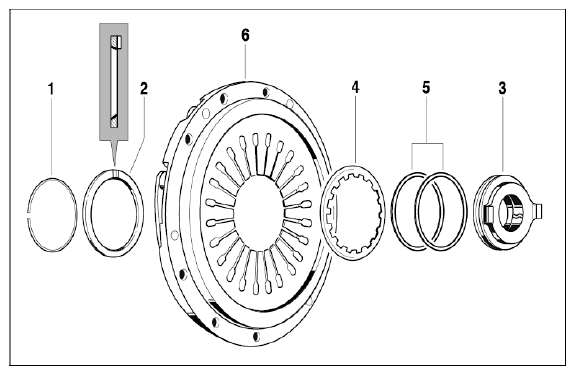

| No. | Designation | Number | Notes |
|---|---|---|---|
| -1- | Snap ring | 1 | Circlip must be removed tensioned. |
| -2- | Thrust washer | 1 | |
| -3- | Release bearing | 1 | Do not wash out or grease, just dry-wipe. |
| -4- | Spring washer | 1 | Fit in correct position |
| -5- | Spacer | 1 | |
| -6- | Pressure plate | 1 |
- Fit release bearing -3- and press pressure plate -6- down using a suitable pressure piece (e.g. a block of hardwood) until the circlip -1- can move freely.
- Remove circlip -1- .
- Take off the release bearing -3- .
