Installing Release Bearing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The sliding surface of the release bearing has irregular slots. This is not a defect.

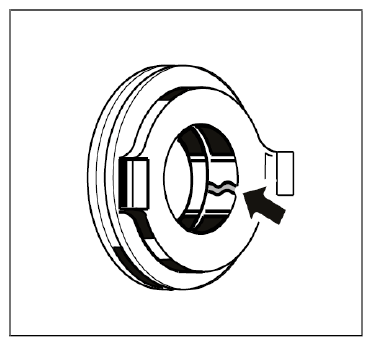

Fig 1: Locating Release Bearing Slot
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

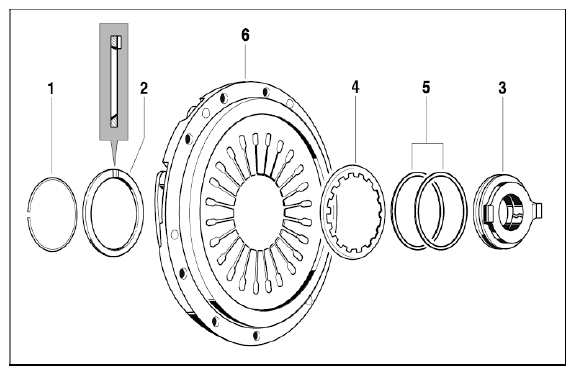

Fig 2: Identifying Release Bearing And Clutch Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

No.	Designation	Number	Notes
-1-	Snap ring	1	Ensure correct seating.
-2-	Thrust washer	1	Engage twist lock in the cutout of a diaphragm spring tongue.
-3-	Release bearing	1	Do not wash out or grease, just dry-wipe.
-4-	Spring washer	1	Fit in correct position
-5-	Spacer	1
-6-	Pressure plate	1	Check for signs of wear and replace if necessary.

Fit spacer -5- and spring washer -4- on release bearing -3- . Ensure that the spring washer is seated correctly.

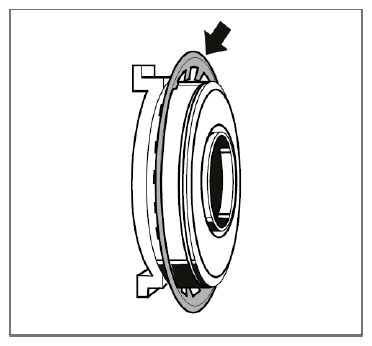

Fig 3: Locating Spring Washer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage release bearing with lugs (twist lock) in the cut-out between the tongues of the diaphragm spring.
Fit release bearing and press pressure plate -6- down using a suitable pressure piece (e.g. a block of hardwood) until the circlip -1- can be fitted.
