Removing Clutch Slave Cylinder

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect hydraulic line for clutch actuation (up to model year 2009 - screw apart/from model year 2010 onwards - release and pull apart using loosening tool 9780).
Collect emerging hydraulic fluid in a container. Close off open lines with suitable stoppers.

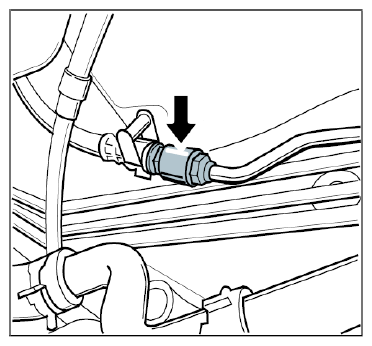

1. 1.1. Up to model year 2009: Screw plug-in coupling for the clutch hydraulic system apart at the body (green lead). -arrow- .

  Fig 1: Locating Plug-In Coupling (Up To Model Year 2009)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

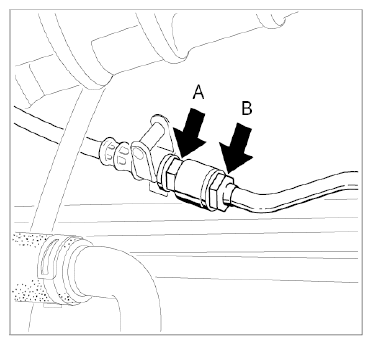

  When loosening, turn at the threaded joint -A- and counter at the hexagon on the plug-in coupling -B- (using an open-ended wrench).

  Fig 2: Locating Opening Plug-In Coupling (Up To Model Year 2009)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

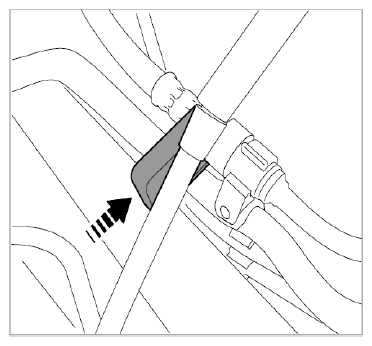

2. 1.2. From model year 2010: Disconnect the hydraulic line (for clutch actuation) using the loosening tool 9780 (release -arrow- and then pull the lines apart).

  Fig 3: Removing Plug-In Coupling (From Model Year 2010)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the holder for the clutch slave cylinder (on transmission -arrow- and disconnect the clutch slave cylinder).

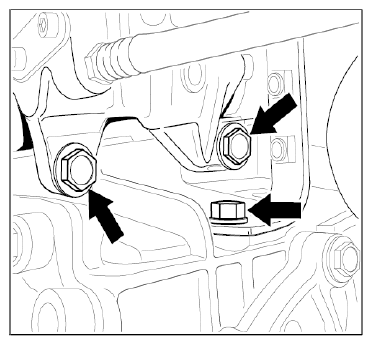

Only loosen the clutch slave cylinder fastening screws (2 screws) -arrows- slightly (do not yet unscrew completely).

Fig 4: Locating Clutch Slave Cylinder Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

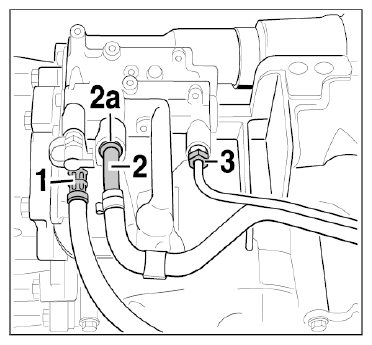

Disconnect (unscrew) line -1- on clutch slave cylinder.
Pull off return line -2- . To do this, press evenly on the red ring (never on one side) -2a- and pull the line -2- out evenly while pressing (releasing) it. Use disassembly tool Nr.21 to release the line.

Fig 5: Identifying Lines At Clutch Slave Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Up to model year 2009: Screw off the pressure line -3- at the clutch slave cylinder. Due to the restricted space, it is a good idea to use an open socket wrench and adapter Open-end/ring wrench insert Nr.98-1 Pos.1 .
From model year 2010 onwards, the line -3- is disconnected at the connection point for the line (see description for next step).

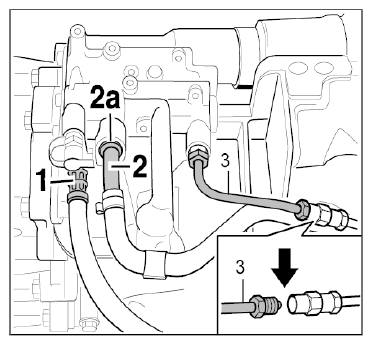

From model year 2010 onwards: Disconnect the pressure line -3- at the connection point -arrow- . This procedure depends on how much space is available in the area.

Fig 6: Locating Lines At Clutch Slave Cylinder - As Of Model Year 2010
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screws on clutch slave cylinder (two screws). Carefully remove clutch slave cylinder.
